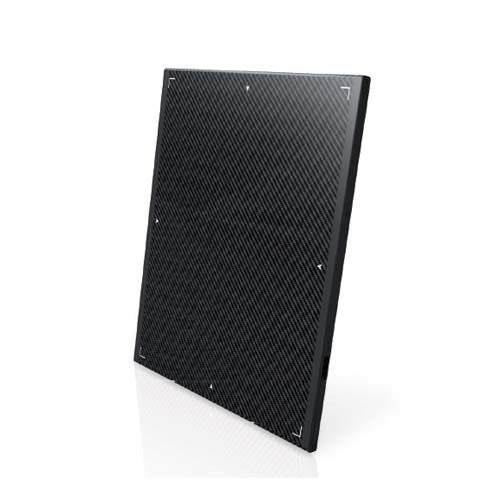

Pixxgen 17x17 DR Panel

Pixxgen 17x17 DR Panel – Wired & Wireless

Features:
High Image Quality – Clear images with high SNR and low noise at lower doses.
Faster Image Acquisition (AED™) – 17" x 17" coverage in 3–5 seconds, with second-generation AED for accurate and efficient imaging.
Stand-alone Use – Works directly with X-ray source in portable/mobile setups.
On-board Storage – Saves up to 100 images to prevent data loss.
Web Viewer for Mobile – Instant viewing on any personal device.
One-piece Carbon Body – Lightweight, durable carbon fiber construction.
OLED Display – Shows detector status for easy monitoring.
Standard Data Link (HDMI) – Reliable wired connection option.
High-speed Wi-Fi with ~6-hour Battery – Wireless operation for mobility

Specifications:
Application: General Radiography
Sensor: a-Si TFT Flat Panel Detector
Conversion Screen: CsI (GOS)
Image Size: 17 x 17 inch (427.25 mm x 427.25 mm)
Sensor Pixel: 3,072 x 3,072 (9.4 MP)
Pixel Size: 140 µm
Spatial Resolution: 3.6 lp/mm
Image Data: 14 / 16 bit
Trigger Mode: AED (Automatic) / Manual
Calibration Mode: ACC (Auto) / Manual
Data Transfer Time: <1 sec
Capture Cycle: 3–5 sec approx.
Wired Interface: Gigabit Ethernet
Voltage: AC 100–240V, 50/60Hz | DC18V 3.5A
Wireless Standard: IEEE 802.11ac
Battery: Lithium-Ion Polymer
Dimensions (W x L x T): 461 x 460 x 15 mm
Weight: 2.6 kg (5.7 lb), 3.0 kg (6.6 lb with battery)
