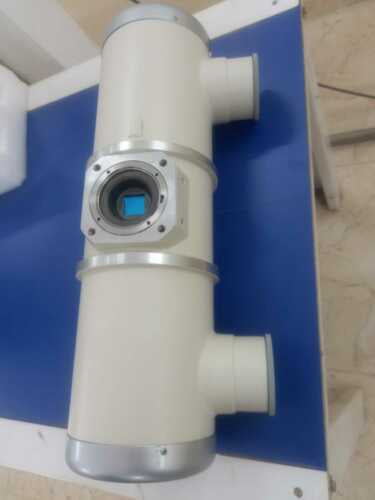

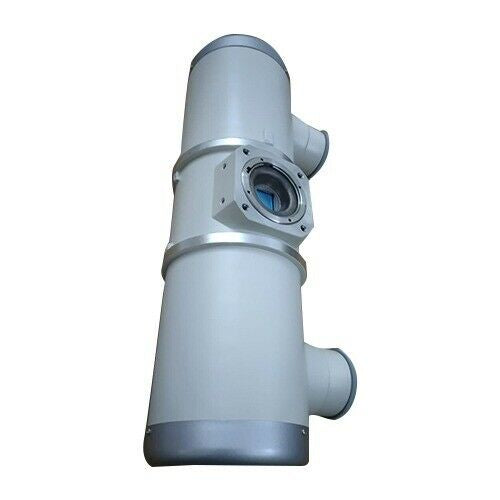

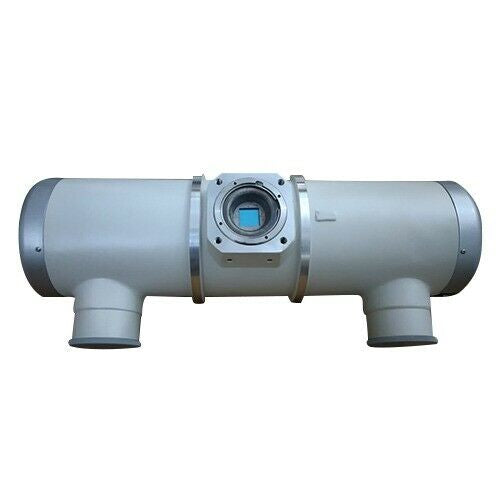

Maximum operating tube voltage(kV) 125 Filament characteristic(V) (Small filament)Ifmax=5.5A,Uf=7~9V (The filament)Ifmax=5.5A,Uf=10~13V Target materials W Target Angle 17.5° Diameter(mm) 70 Speed(r/min) 2700(50Hz) The inherent filtration(mmAl) 0.8~1.2 Weight(≤kg) 18 Focal nominal value 1.0/2.0 Maximum power(0.1s)(kw) 20/40 Continuous maximum rating(W) 410 Component radiation field 354mm*354mm Component heat capacity 900kJ(1250kHU) Insulation resistance between low voltage terminal and housing 2MΩ Stator parameters Power supply frequency (HZ) 50(start) 50(working) Voltage(V) 160(start) 40(working) Maximum startup time(S) 1.2 Split phase capacitor (μF) 40(start) 40(working)
