X-Ray Tube Insert KL20-2.8-105

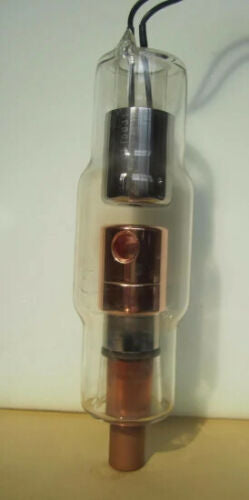

Description: KL20-2.8-105 stationary X-Ray tube is especially designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit. KL20-2.8-105 tube has one focus. The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode. The high anode heat storage capacity ensures a wide range of applications for general diagnostic x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support Quick Detail: Type: Station anode x-ray tube Model: KL20-2.8-105 Application: For general diagnostic x-ray unit Equivalent to CEI OX105-6 Integrated high quality glass tube Specifications: Nominal Tube Voltage.................................................................................................................................................105kV Nominal Inverse Voltage..............................................................................................................................................115kV Nominal Focal Spot............................................................................................................................2.8 (IEC60336/1993) Max Anode Heat Content...........................................................................................................................................30000J Max. Anode Cooling Rate.............................................................................................................................................250W Target Angle........................................................................................................................................................................19° Filament Characteristics..............................................................................................................3.0 – 5.0A, 6.0 – 10.0V Permanent Filtration.............................................................................................Min. 0.8mmAl/50KV(IEC60522/1999) Target Material........................................................................................................................................................Tungsten Max. current continuous service...........................................................................................................3.0mA@100kVAC Nominal Anode Input Power....................................................................................................................................6000W
