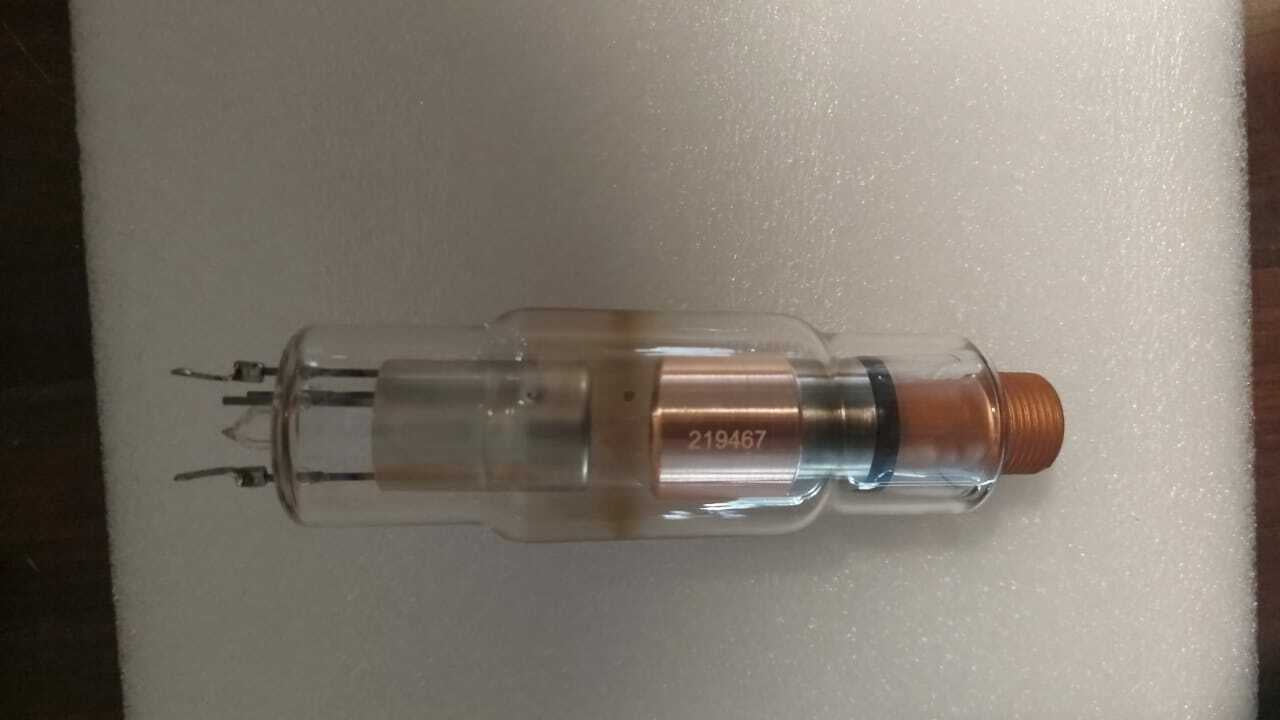

X-Ray Tube Insert KL22-1.8-90 Series

General Data Safety Classification: FDA ……………………………………………………………………………………………... I IEC60601-1:2005……………………………………………………………………….……..IB Directive 93/42/EEC ..…………………………………………………………….………… IIB Electrical: Circuit: High Voltage Generator……………..……Constant Potential High-Voltage Generator Grounding………………………………………………………….……. Center-grounded Nominal X-ray Tube Voltage ….………………………………………………….….......90 kV Nominal Focal Spot Value (IEC60336:2005) ……...………………………………...……1.8 Nominal Anode Input Power (at 1.0 s) ................................................................. 3600 W Exposure Duty Cycle ................................................................................... 1:60 or more (Exposure time : interval time) Mechanical: Dimensions Overall Length……………………………………………...……See dimensional outline Maximum Diameter ………………………………….……...… See dimensional outline Target: Anode Angle ............................................................................................. 19 degrees Material ….................................................................................................... Tungsten Inherent Filtration ............................................... Min. 0.9 mm Al / 75 kV IEC60522:1999 Weight (Approx.) KL22...................................................................................................................0.3 kg KL22SB..............................................................................................................0.8 kg X-ray Coverage .................................................................354 × 354 mm at SID 520 mm Cooling Method………………..……Oil immersed (60°C Max.) and convection oil cooling
