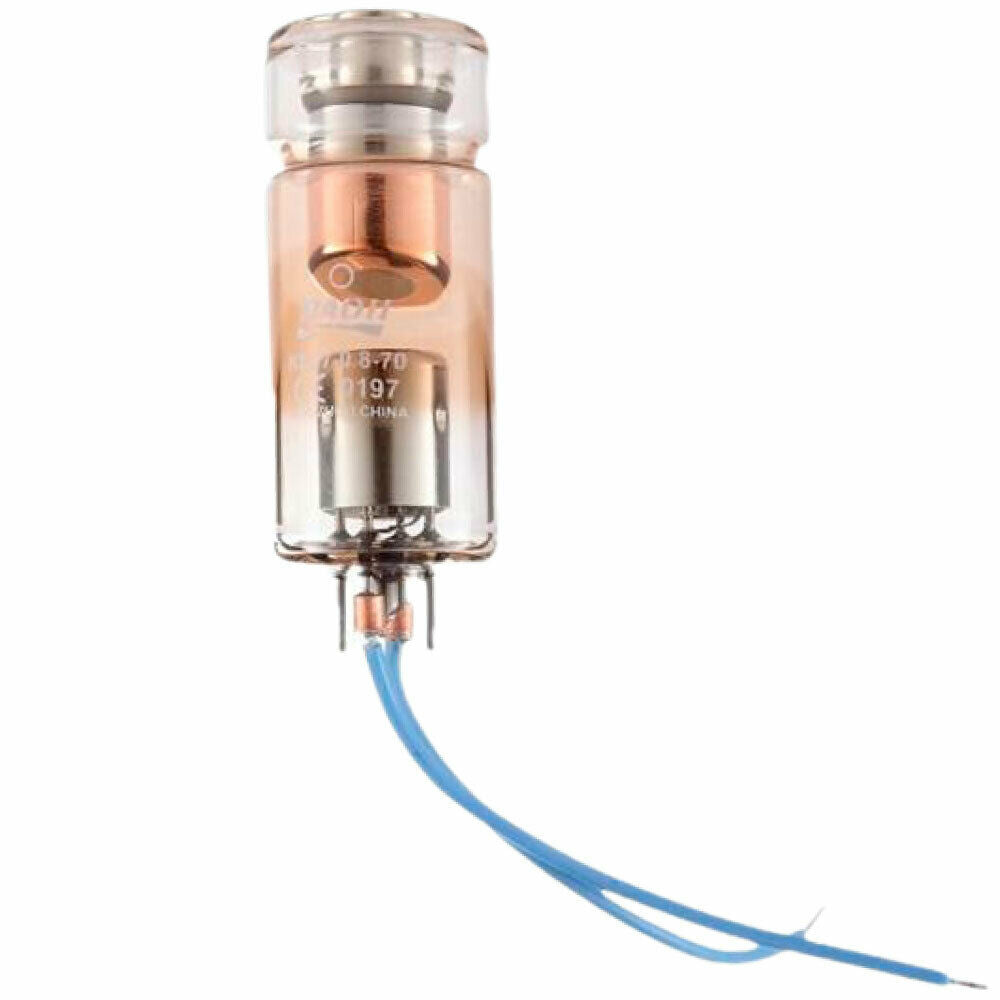

X-Ray Tube Insert KL27-0.8-70

Description: KL27-0.8-70 Stationary anode X-Ray Tube is especially designed for intra-oral dental x-ray unit and available for a nominal tube voltage with self-rectified circuit. KL27-0.8-70 tube has one focus. The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode. The high anode heat storage capacity ensures a wide range of applications for intra-oral dental application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support. Quick Detail: Type: Station anode x-ray tube Application: For intra-oral dental x-ray unit Model: KL27-0.8-70 Equivalent to CEI OX70-M Integrated high quality glass tube Specifications: Nominal Tube Voltage………………………………………….…………………………….70kV Nominal Inverse Voltage…………..…………………….………………..…………………85kV Nominal Input Power(at 1.0s)………………………………………………………………840W Max. Current Continuous Service……………………………….………………….2mA x 70kV Max. Anode Cooling Rate……………………………………….………….………………140W Max. Anode Heat Content………….……….…………………..……………………………..7kJ Filament Characteristics………………………..….….………………..Imax 2.1A,2.85±0.5V Nominal Focal Spot………………………………………………………..0.8 (IEC60336/2005) Target Angle………………………………………………………….……………………….19° Target Material…………………………………..………………….…………………Tungsten Cathode type……………………….…………………………………………….…….W filament Permanent Filtration………..…………..………………Min. 0.5mmAl/50 kV(IEC60522/1999) Dimensions………………………………..…………….……72mm length by 30mm diameter Weight…………………………………………………………………………….……..90 grams
